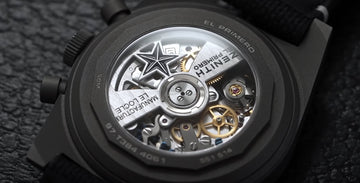

Watch Movement: The Intricate Soul of Your Watch

Inside your mechanical or quartz watch is a finely tuned machine. Have you ever wondered what makes your watch tick (literally)? The movement is the beating heart of any timepiece.

In fact, some of the most iconic mechanical movements, like those used in Rolex or Omega watches, have been perfected over decades. Did you know that Rolex, one of the leaders in watchmaking, spends over 1,000 hours testing and assembling each movement in-house? This commitment to quality made mechanical movements not just functional mechanisms but as a form of art.

In this article, we’ll look into the fascinating world of watch movements, exploring the different types, their components, and how they work together to keep time.

What is a Watch Movement?

A watch movement—often referred to as the "caliber"—is the tiny engine that powers a watch. It drives the timepiece's hands and complications. It's the complex mechanism inside the watch case that translates stored energy into precise motion, making it the "soul" of the timepiece.

Watch Movement Types

Watch movements are typically categorized into three main types: mechanical, automatic, and quartz. Each type has unique characteristics, functionality, and appeal, catering to different preferences and needs. Here's a breakdown:

1. Mechanical Movement

• A purely manual system powered by a coiled mainspring that must be wound regularly by hand. The mainspring stores energy and releases it through a series of gears and escapements to keep the watch ticking.
• Key Features:
  • Requires daily or periodic winding
  • Known for its craftsmanship, traditional engineering, and artistry
  • Often has a sweeping second hand with smooth motion (typically 6 to 8 beats per second)
• Pros:
  • Long life when properly maintained
  • Does not rely on batteries or electronics
  • Appeals to collectors for the watch's intricate design and history
• Cons:
  • Requires regular maintenance (e.g., lubrication, adjustments)
  • Less accurate than quartz watches due to minor timing deviations

2. Automatic Movement

• A subset of mechanical movements, automatic movements are the main engines of self winding watches. They use a rotor that rotates with the wearer's wrist motion, winding the mainspring automatically.
• Key Features:
  • Eliminates the need for manual winding if worn regularly
  • Also has a smooth sweeping motion of the second hand
• Pros:
  • Convenient for everyday wear without manual winding
  • Retains the craftsmanship of mechanical watches
  • Eco-friendly with no need for batteries
• Cons:
  • Can stop running if not worn for extended periods
  • Like mechanical movements, it requires regular servicing.

3. Quartz Movement

• Powered by a small battery, quartz movements use a quartz crystal that vibrates at a precise frequency when electrified. These vibrations regulate the timekeeping mechanism.
• Key Features:
  • Known for accuracy and low maintenance
  • The second hand usually "ticks" at one-second intervals
• Pros:
  • Affordable and widely available
  • Highly accurate with minimal timing deviations
  • Long-lasting battery life (typically 1 to 5 years)
• Cons:
  • Lacks the charm of mechanical craftsmanship
  • Battery replacements are necessary.

Specialized Movement Types

Beyond quarts vs mechanical vs automatic watch movements, there are some niche or hybrid movement types:

• Kinetic Movement: Combines automatic winding and quartz accuracy, generating electricity from wrist movement
• Spring Drive: A unique blend of mechanical and electronic components found in select luxury models.

Components of a Watch Movement

Thanks to precise engineering, the intricate components of a watch movement work harmoniously for accurate timekeeping and to power the watch's functionality. These parts vary between mechanical, automatic, and quartz movements. However, the fundamental structure and principle are similar.

1. Power Source

• Mechanical and Automatic Watches:
  • The mainspring is a tightly wound spring that stores energy. In mechanical watches, the wearer manually winds it. In automatic watches, a rotor winds it via wrist motion.
• Quartz Watches:
  • A battery provides electrical energy to power the quartz crystal and the motor.

2. Energy Transmission

• The movement's gear train consists of small gears that transfer energy from the mainspring (or battery) to the escapement. These gears reduce the energy's speed to drive the hands at the correct rate.

3. Time Regulation

• An escapement controls the release of energy to maintain consistent timekeeping. It transforms the energy into regular intervals. Key components include:
  • Escape wheel: Works with the pallet fork to regulate energy flow
  • Pallet Fork: Acts like a gate, controlling how energy is released to the balance wheel
• The balance wheel is the oscillating part that regulates the ticking rate in mechanical watches. It's akin to a pendulum in a clock.
• In quartz watches, a quartz crystal vibrates at a precise frequency (typically 32,768 Hz) when electrified, regulating timekeeping electronically.

4. Time Display

• The hands indicate hours, minutes, and seconds on the dial.
• A cannon pinion connects to the gear train and drives the hour and minute hands.
• The dial, or face, is the visible surface where the hands and other complications are displayed.

5. Additional Components (Complications)

• For watches with calendar functions, these date/day wheels rotate to display the day or date.
• A chronograph mechanism allows the measurement of elapsed time in watches with stopwatch functionality.

6. Winding and Setting Mechanisms

• The crown is a knob on the side of the case used for manual winding (mechanical/automatic) and setting the time and date.
• The stem connects the crown to the internal gears for time and date adjustments.

7. Rotor (Automatic Watches Only)

• The rotor is a semi-circular weight that spins with wrist motion. This winds the mainspring automatically.

8. Electronic Circuitry (Quartz Watches Only)

• The quartz circuitry converts energy from the battery to power the quartz crystal and motor.
• The step motor converts electrical energy into mechanical movement, driving the hands of the watch.

9. Shock Absorbers

• Sensitive components such as the balance wheel and escapement are protected from impact damage via shock absorbers. A well-known system is Incabloc, often found in luxury watches.

10. Plates and Bridges

• The mainplate is the base framework that holds all the movement components together.
• Bridges are additional supports that hold the gears and other parts in place above the mainplate.

How Do Watch Movements Work?

Watch movements all function based on the fundamental principle of converting energy into motion. However, the methods they use to achieve this are different.

1. Mechanical Watch Movement

A mechanical movement relies entirely on manual winding to provide energy to the watch.

• Winding the Mainspring: The process begins with manually winding the crown of the watch, which tightens the mainspring inside the movement. The mainspring stores potential energy as it winds up.
• Releasing Energy: As the mainspring unwinds, it releases energy in a controlled manner through a series of gears. This energy is transferred to the escapement.
• Escapement Function: The escapement controls the flow of energy, releasing it in small, regular increments. It transfers energy to the balance wheel.
• Balance Wheel Oscillation: The balance wheel oscillates back and forth, regulating the flow of energy to ensure the watch runs at a consistent rate. This oscillation creates the “tick-tock” sound.
• Hands Movement: The energy from the escapement drives the gears connected to the hands of the watch, causing them to move.

In mechanical watches, the entire process is powered by the mainspring. The mainspring needs to be wound regularly, usually every 24 to 48 hours.

2. Automatic Watch Movement

An automatic (or self-winding) movement is a variation of the mechanical movement, designed to wind itself using motion rather than manual winding. Check this article for more details on how do automatic watches work.

• Rotor: Inside the watch is a small metal weight called a rotor, which is attached to the movement. As the wearer moves their wrist, the rotor spins around its axis.
• Energy Transfer: The motion of the rotor winds the mainspring automatically. The rotor moves a gear train that winds the mainspring, powering the watch.
• Escapement and Balance Wheel: Once again, the escapement regulates the energy release of the mainspring, transferring it to the balance wheel. The balance wheel oscillates to keep time.
• Hands Movement: The energy is then transferred to the hands via the gear train, causing the hands to move at the appropriate rate.

Automatic watches don't require manual winding as long as they are worn regularly. If left unworn for a period, they will stop and require winding to start again.

3. Quartz Watch Movement

A quartz movement is quite different, as it uses electronic components rather than mechanical parts to keep time.

• Battery Power: A small battery inside the watch provides electrical energy. This battery sends a current to a quartz crystal.
• Quartz Oscillation: The quartz crystal vibrates at 32,768 times per second when an electrical current passes through it. This vibration acts as the timekeeping regulator.
• Electronic Circuitry: The vibrations of the quartz crystal are processed by an electronic circuit, which converts the oscillations into a stable, accurate time signal.
• Stepping Motor: The circuit sends signals to a step motor, which converts the electrical energy into mechanical energy. The step motor then drives the hands of the watch, moving them at the correct rate (typically in one-second increments).
• Accuracy: Quartz movements are incredibly accurate because the quartz crystal's vibrations are consistent. In fact, quartz watches render more precise timekeeping than mechanical movements.

Quartz watches are low-maintenance and don't require winding. However, they do rely on battery power. That means you need to change batteries every 1 to 5 years.

Key Differences in How They Work:

• Energy Source: Manual wind watches and automatic watches rely on a mainspring for energy while quartz watches use a battery.
• Regulation of Time: Automatic and manual watch movements use a balance wheel and escapement to regulate time while quartz watches use the oscillation of the quartz crystal.
• Movement: Mechanical watches move in a smooth, sweeping motion while quartz watches have a “tick” motion in one-second increments.

Care and Maintenance of Your Watch Movement

Your watch movement is a precision-engineered machine. Even if a tough casing protects it, it can easily get damaged. Taking care of your watch movement is important to preserve its longevity, accuracy, and overall performance.

1. Regular Winding (for Mechanical and Automatic Watches)

• Mechanical Watches: If you have a manual wind watch, it's important to wind it regularly. Wind the crown once a day, typically in the morning, to keep the mainspring fully wound. Don’t overwind it as it can damage the mainspring.
• Automatic Watches: While a self-winding watch winds itself through wrist movement, if you don’t wear it every day, it may stop. If that happens, manually wind the watch once or twice to get it started.
• Tip: Avoid letting an automatic watch stay unworn for long periods. The lubricants inside the movement may settle or will be distributed unevenly.

2. Keep it clean and dry.

• Although many watches are water-resistant, it's still a good idea to avoid getting your watch wet.
• Dust, sweat, and grime can accumulate in your watch, affecting its performance. Use a soft, dry cloth to wipe the case and bracelet regularly. For deeper cleaning, use a mild soap solution. Scrub the solution gently with a soft brush. Wipe the watch with a wet cloth then with a dry cloth. Make sure the watch is completely dry afterward.
• If your watch has leather straps, avoid exposing them to water. This can degrade the leather.

3. Avoid strong magnetic fields.

• Strong magnetic fields can interfere with the accuracy of your watch, especially mechanical watches. Keep your watch away from electronics, speakers, or magnets.
• If you suspect that your watch has become magnetized (you might notice the time becoming irregular), you can take it to a watchmaker or jeweler to demagnetize it.

4. Service your watch regularly.

• Mechanical watches benefit from regular servicing, typically every 3 to  5 years. The watchmaker will disassemble, clean, lubricate, and check the movement for wear.
• While quartz movements require less maintenance, the battery will eventually need replacing. Ensure the battery is replaced by a professional to avoid damage to the movement.
• Keep track of your watch's service history to maintain its performance and value.

5. Be gentle with your watch.

• Watches, especially mechanical ones, are sensitive to shock. Avoid dropping your watch or subjecting it to sudden impacts. These could damage the movement or misalign the components.
• If your watch has a chronograph function, use the pushers gently to avoid stressing the internal mechanisms.

6. Store your watch properly.

• For automatic watches, consider using a watch winder when you're not wearing the watch for an extended period. A watch winder keeps the movement ticking by gently rotating the watch, ensuring the rotor winds the mainspring.
• Store your watch in a cool, dry place and away from direct sunlight and extreme temperatures.
• Avoid storing your watch near places where it could be exposed to humidity or extreme temperature fluctuations.

7. Use the crown properly.

• When setting the time on your watch, avoid pulling or pushing the crown too hard. If your watch has a screw-down crown, be sure to screw it back in securely after adjusting the time or date.
• If your watch has a date function, avoid setting the date during the "date-changeover" period (usually between 8 PM and 4 AM) to prevent damaging the date-change mechanism.

8. Clean the bracelet or strap.

• Whether your watch has a metal bracelet or leather strap, make sure it's in good condition. For metal bracelets, clean regularly with a soft cloth and, if needed, with soapy water (dry thoroughly afterward). For leather straps, use a leather conditioner to keep the material supple and to prevent cracking.
• Adjust the bracelet size if it feels too tight or too loose. A poor fit can lead to unnecessary wear on the watch.

9. Be careful with extreme temperatures.

• Avoid Hot or Cold Temperatures: Extreme heat or cold can affect your watch's accuracy and cause damage to the movement. Avoid wearing your watch in conditions where it could be exposed to high temperatures (such as near ovens, saunas, or hot tubs) or extreme cold.

Conclusion

Watch movements display a marvelous blend of engineering, craftsmanship, and history. They turn a simple watch into something truly special. There’s a whole world hidden behind that elegant dial. The gears, the springs, the oscillating balance wheel—all working in perfect harmony. It’s a bit like discovering the backstage magic of your favorite performance.

Now you know that there’s a lot more going on inside your watch than meets the eye.
