Understanding the Functionality of a Watch Spring Balance

The soul of a top-quality mechanical watch is precision engineering that keeps tracking time extra accurate. At the heart of this intricate system lies the watch spring balance, a tiny yet essential part responsible for regulating the movement’s rhythm.

Despite its small size, the balance spring is highly sensitive to external factors such as temperature fluctuations, magnetism, and shocks, all of which can impact a watch’s accuracy.

Understanding the functionality of a watch spring balance helps you appreciate the craftsmanship behind mechanical timepieces. Whether you are a watch enthusiast, collector, or simply curious about horology, knowing how this component operates—and what affects its performance—will deepen your knowledge of what makes a fine timepiece truly exceptional.

What is a Spring Balance?

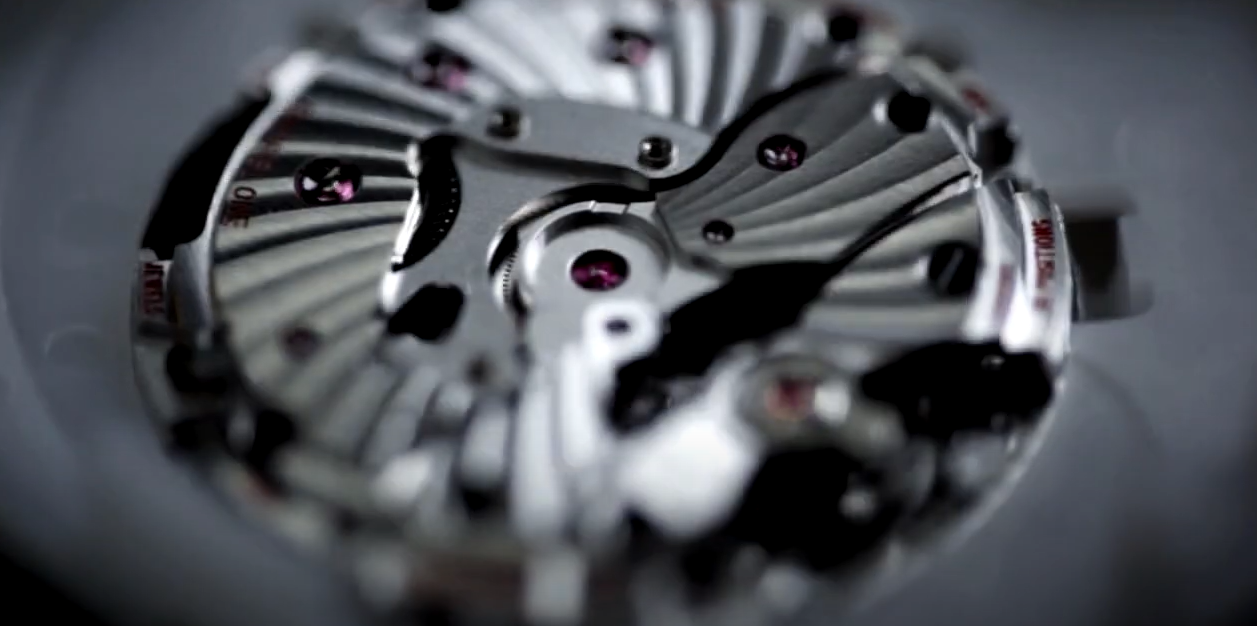

In luxury mechanical watches, a spring balance—commonly known as the balance spring or hair spring—is a crucial component of the watch’s regulating system. It works in tandem with the watch balance wheel to control the timekeeping accuracy of a mechanical movement.

How Does a Spring Balance Work?

A watch spring balance regulates the oscillations of the balance wheel, ensuring the precision and consistency of timekeeping a mechanical watch's timekeeping. It's the heart of the watch movement, dictating the release of energy in controlled intervals.

1. Energy transfer from the mainspring: The free sprung balance mainspring, which stores energy when wound, gradually releases this energy through the gear train and escapement.
2. Impulse from the escapement: The escapement (usually consisting of the escape wheel and pallet fork) transfers small, regulated impulses to the balance wheel, setting the wheel in motion.
3. Oscillation of the watch balance wheel: The watch balance wheel, attached to the balance spring, swings back and forth in a consistent rhythm. The balance spring controls the speed and regularity of these oscillations by coiling and uncoiling, much like a pendulum in a clock.
4. Regulating timekeeping: Each oscillation determines the rate at which the escape wheel releases energy, dividing time into equal segments. The frequency of oscillations (e.g., 28,800 vibrations per hour (vph) or 4 Hz) influences the accuracy of the watch.
5. Return to equilibrium: The elasticity of the balance spring returns the balance wheel to its neutral position consistently.

Materials Used for a Spring Balance Watch Spring Balance

Because of their vital function in watches, balance springs for watches are crafted from specialized materials to ensure durability, precision, and resistance to various external influences (e.g., temperature changes, magnetism, and shocks).

1. Traditional Materials

• Carbon Steel (Early Watches)
  • Used in early pocket watches
  • Prone to rust, magnetism, and temperature-induced expansion
• Breguet Overcoil Steel
  • A refined steel alloy with an overcoil shape to improve isochronism
  • Still found in high-end mechanical watches today

2. Modern Alloy-Based Balance Springs

• Nivarox
  • A non-magnetic alloy of iron, nickel, chromium, titanium, and beryllium
  • Improves resistance to temperature variations and magnetism
  • Used by brands such as Omega and Rolex before moving to proprietary materials
• Parachrom (Rolex's proprietary alloy)
  • A blend of niobium and zirconium, developed to resist shocks and magnetism
  • Features a blue oxide layer for corrosion resistance
  • Found in Rolex’s modern timepieces

3. Silicon Hairspring

• Silicon (Si14 - Omega, Spiromax - Patek Philippe, Syloxi - Rolex)
  • Extremely lightweight and non-magnetic
  • Resistant to corrosion, temperature fluctuations, and wear
  • Used in high-end luxury watches for better long-term accuracy

Factors Affecting the Performance of a Watch Spring Balance

The performance of a watch spring balance is influenced by several factors that affect its ability to regulate time accurately. These factors can impact the oscillations, isochronism, and stability of the balance spring.

1. Temperature variations: Changes in temperature can cause the balance spring to expand or contract, affecting its elasticity and altering the watch’s accuracy.

2. Magnetism: Exposure to magnetic fields (e.g., from smartphones, speakers, or MRI machines) can cause the balance spring to stick to itself, disrupting its oscillation.

3. Shock and vibration: Sudden impacts (e.g., dropping the watch) can alter the balance wheel’s movement or even deform the spring.

4. Gravity and positioning: The watch’s position (horizontal vs. vertical) affects the balance spring’s performance due to gravitational forces.

5. Isochronism (consistent oscillation rate): As the mainspring unwinds, the force delivered to the escapement can vary, affecting oscillation stability.

6. Wear and aging: Over time, the balance spring may accumulate dirt, lose elasticity, or wear out due to material fatigue.

Signs There's Something Wrong with Your Watch Spring Balance

If your watch spring balance is malfunctioning, it can cause noticeable issues in timekeeping. Since the balance spring regulates the oscillations of the balance wheel, any problem with it will directly impact the accuracy and performance of your mechanical watch.

1. Irregular Timekeeping

• The watch is running too fast or too slow beyond normal tolerances.
• Sudden fluctuations in accuracy, such as gaining or losing several minutes per day
• Possible cause: A tangled, magnetized, or deformed balance spring

2. Watch Stops Unexpectedly

• The watch suddenly stops running even when fully wound
• Intermittent stopping and restarting without an apparent reason
• Possible cause: The balance spring is stuck, dirty, or misaligned.

3. Inconsistent Tick Sound

• A weaker, erratic, or uneven ticking sound compared to the usual rhythm
• A loud or irregular beat that sounds out of sync
• Possible cause: The balance wheel is off-center, or the spring is distorted.

4. Unusual Behavior in Different Positions

• The watch runs fast or slow only in certain positions (e.g., flat vs. upright).
• Accuracy changes when the watch is worn vs. when left stationary.
• Possible cause: Gravity affects a damaged or improperly adjusted balance spring

5. Resistance or Hesitation When Winding

• The watch feels stiff or resistant when winding
• The movement does not start immediately after winding
• Possible cause: A dislodged or tangled balance spring affecting the gear train

6. Impact or Shock Damage

• The watch stopped working after a drop or strong impact.
• Possible Cause: The balance spring may have been deformed or knocked out of its position. Or the shock absorption system failed.

What to Do If You Notice These Signs?

• Demagnetize the watch: If the issue is caused by magnetism, a watchmaker can use a demagnetizer to restore performance.
• Avoid DIY fixes: The balance spring is delicate, and improper handling can worsen the problem.
• Service the watch: A professional watchmaker can clean, realign, or replace the balance spring if necessary.

How to Maintain Your Spring Balance

Since the balance spring is a delicate component, small disruptions can lead to significant timekeeping errors. Unless you are a professional watchmaker, it's discouraged to open the case back and tinker with the watch movement to fix the spring balance. Here are key steps to maintain its performance:

1. Protect your watch from strong magnetic sources.

• Keep your watch away from magnetic sources such as smartphones, laptops, speakers, and MRI machines.
• If your watch starts running too fast, it might be magnetized—have it demagnetized by a professional watchmaker.
• Consider watches with silicon or anti-magnetic balance springs, such as those by Rolex (Parachrom) or Omega (Si14).

2. Avoid hard impacts and shocks.

• Mechanical watches have shock-absorption systems (Incabloc, Paraflex), but excessive force can still affect the balance spring.
• Remove your watch before high-impact activities such as engaging in sports, heavy lifting, or sudden drops.
• If you dropped the watch, have it checked for possible misalignment of the balance spring.

3. Keep the watch cleaned and serviced.

• Dirt and dust can accumulate in the movement, causing the balance spring to stick or lose elasticity.
• Regular watch servicing (every 3 to 5 years) ensures proper cleaning and lubrication.
• Store your watch in a clean, dry place when not in use.

4. Store your watch properly.

• Use a watch box or winder to keep it safe from dust and humidity.
• Lay the watch dial-up or crown-down depending on the regulation needs (some positions affect timekeeping slightly).

5. Wind your watch correctly.

• For manual watches, wind gently and fully once a day to maintain consistent power delivery.
• Avoid overwinding as excessive tension can put stress on the movement and balance spring.
• For automatic watches, wear them regularly or place them in a watch winder to keep the movement running smoothly.

6. Service your watch when you notice irregularities.

• If your watch starts running too fast, too slow, or stopping intermittently, have it inspected.
• A trained watchmaker can diagnose issues such as a misaligned, magnetized, or deformed balance spring.

Conclusion

The watch spring balance is one of the most vital components in a mechanical timepiece. By working in harmony with the watch balance wheel, it transforms stored energy into a steady oscillation, regulating the watch’s movement with remarkable accuracy. Without this delicate yet powerful mechanism, the precision of mechanical watches cannot be achieved.
